1KG=2.205LB 1INCH=25.40MM
|

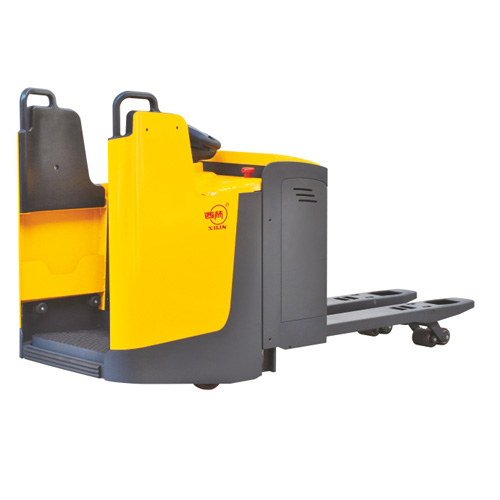

型号 |
CBD20L |
|
|
驱动方式 |
电动 |
|
|
驾驶方式 |
站驾 |
|
|
额定载荷 |
Q(kg) |
2000 |
|
载荷中心距 |
c(mm) |
600 |
|
前悬距 |
x(mm) |
815/865/935 |
|
轮距 |
y(mm) |
1300/1350/1420 |
|
自重（带电瓶） |
kg |
820 |
|
轴负载,满载时前/后轴 |
kg |
1200/1620 |
|
轴负载,空载时前/后轴 |
kg |
700/120 |
|
轮子 |
聚氨酯轮 |
|
|
轮子尺寸，前轮 |
Φ250×80 |
|
|
轮子尺寸，后轮 |
Φ82×126（98） |
|
|
附加轮 |
Φ127×57 |
|
|
轮，前后数量（X=驱动轮） |
1×+2/4 |
|
|
前轮轮距 |
b10(mm) |
490 |
|
后轮轮距 |
b11(mm) |
340/370/470/505 |
|
起升高度 |
h3(mm) |
120 |
|
降低时高度 |
h13(mm) |
82 |
|
总体长度 |
l1(mm) |
2220/2270/2340 |
|
叉面长度 |
l2(mm) |
1120 |
|
车体宽度 |
b1(mm) |
773 |
|
货叉尺寸 |
s/e/l(mm) |
54×180×1100（1150/1220） |
|
货叉外宽 |
b5(mm) |
520/550/650/685 |
|
轴距中心离地间隙 |
m2(mm) |
28 |
|
通道宽度，托盘1000×1200（1200跨货叉放置） |
Ast(mm) |
2420/2470/2540 |
|
通道宽度，托盘800×1200（1200沿货叉放置） |
Ast(mm) |
2520/2520/2540 |
|
转弯半径 |
Wa(mm) |
1970/2020/2090 |
|
行驶速度，满载/空载 |
Km/h |
7/7.1 |
|
提升速度，满载/空载 |
m/s |
0.039/0.056 |
|
下降速度，满载/空载 |
m/s |
0.064/0.050 |
|
最大爬坡能力，满载/空载 |
% |
8/17 |
|
行车制动 |
电磁制动 |
|
|
驱动电机功率 |
kw |
1.2 |
|
提升电机功率 |
kw |
1.2 |
|
蓄电池电压/额定容量 |
V/Ah |
24/240 |
|
蓄电池重量 |
kg |
225 |
|
蓄电池尺寸（长╳宽╳高） |
mm |
650╳249╳504 |
|
驾驶员耳边噪音等级符合DIN12053 |
dB(A) |
70 |
